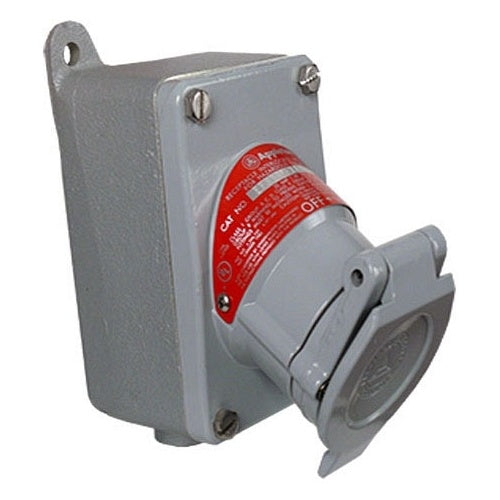

Catalog Description: APPLETON CPS SERIES 1-GANG RECEPTACLE WITH EFD MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 120 - 240 VAC, 24 VDC, MATERIAL: COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM COVER, MALLEABLE IRON MOU
Category: Pin & Sleeve Devices
Full Technical Description: Dead End Type; 3/4 Inch Hub Size; 2 Wire(S); UL 1010, CSA C22.2 Approval; 120/240 Volt AC, 24 Volt DC Voltage Rating; Class I Div 1 and 2 Group C D, NEMA 7BCD Enclosure; 20 Amp Current Rating; 1 HP Power Rating; 3 Pole(S); 1-Gang Box Type; Overall Dimension 3 Inch Length X 7.11 Inch Width X 5.92 Inch Height; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover); Application Air Conditioner, Compressor, Pump, Heater; Applicable Standard Nec/Cec
Manufacturer: Appleton Electric
Manufacturer Brand: Appleton Electric
Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
