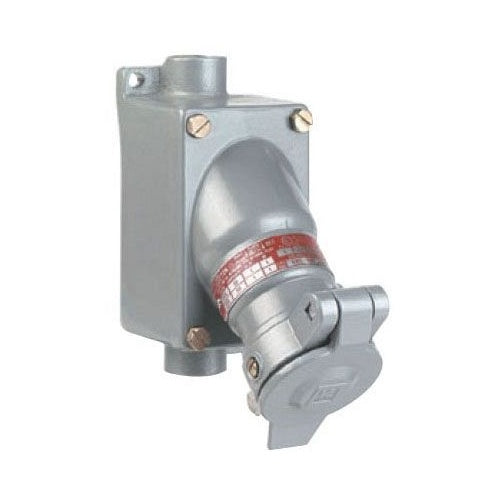

Killark KRS-215-220 Cl1 20A 2W3P Receptacle/3/4" Dead End
Product Specifications
UPC: 78393639170
Hub Size: 3/4 Inch
Mating Plug: KP
Enclosure: Class I Group D
Approval: UL, CSA
Additional Information: Includes Back Box; Material Copper Free Aluminum
Catalog Number: KRS-215-220
Model: KR
Type: Dead End
Voltage Rating: 115/230 VAC
Current Rating: 20 Ampere
Power Rating: 1 HP
Number Of Poles: 3
Number Of Wires: 2
Catalog Description: KR SERIES - ALUMINUM 20 AMP RECEPTACLE WITH DEAD-END ENCLOSURE - 2W 3P CIRCUIT - 115/230VAC AT 60HZ - HUB SIZE 3/4 INCH
Category: Receptacles & Surge Protectors
Full Technical Description: Dead End Type; 3/4 Inch Hub Size; 2 Wire(S); UL, CSA Approval; 115/230 VAC Voltage Rating; Class I Group D Enclosure; 20 Ampere Current Rating; 1 HP Power Rating; 3 Pole(S); Kp Mating Plug; Includes Back Box; Material Copper Free Aluminum; KR Model
Made In Usa: Yes
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
