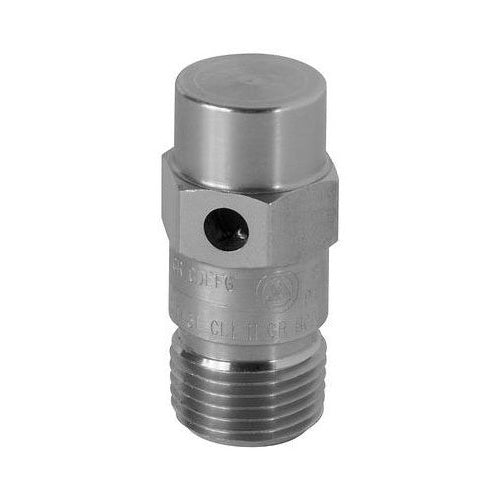

Appleton ECDB50HP 1/2" Drain/Breather

Overview

Appleton ECDB50HP 1/2" Drain/Breather

Product Specifications

• UPC: 78138183894
• Catalog Number: ECDB50HP
• Type: Universal, Drain/Breather
• Thread Size: 1/2 Inch
• Material: Natural Copper-Free Aluminum
• Enclosure: Class I Div 1 and 2 Group B/C/D, Class II Div 1 and 2 Group E/F/G, Class III, NEMA 3R
• Approval: UL 886/E34997, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof; Application Hazardous Location, Wet Location
• Catalog Description: UNIVERSAL DRAIN AND BREATHER, SIZE: 1/2 IN, MATERIAL: STAINLESS STEEL, MOUNTING: TOP AND/OR BOTTOM OF ENCLOSURE HOUSING, ENCLOSURE: NEMA 3R, FINISH: NATURAL STAINLESS STEEL, CONNECTION: TAPERED MNPT, STANDARD: UL 886 (1203), UL FILE NUMB
• Category: Enclosure Drain & Pressure Breathers
• Full Technical Description: Combination Drain/Breather, Universal Type; Stainless Steel Material; UL 886 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R Enclosure; 1/2 Inch Thread Size; Constructional Feature Explosionproof/Dust Ignitionproof; Application Hazardous Location, High Performance Water Drainage/Continuous Ventilation; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Drain/Breather
• Unspsc: 39121311
• UPC 12 Digit: 781381838948
• SKU Name: app ecdb50hp

Resources

• Manufacturer Spec Sheet
