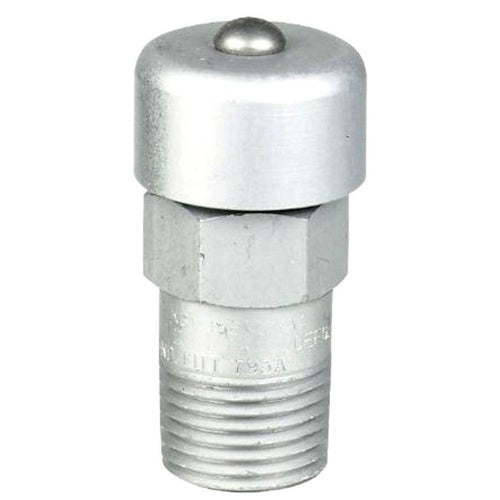

Killark KB1B Breather Fitting

Overview

Killark KB1B Breather Fitting

Product Specifications

• UPC: 78393638160
• Catalog Number: KB1B
• Model: KB
• Type: Breather
• Thread Size: 1/2 Inch NPT
• Material: Aluminum (Body)
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3
• Approval: UL, CSA
• Additional Information: Used On KB/KD Series Drain and Breathers
• Catalog Description: THE KB & KDB DRAIN AND BREATHER ARE INSTALLED EITHER THE BOTTOM TOP OF AN ENCLOSURE. WHEN INSTALLED IN THE BOTTOM THEY ACT AS A GRAVITY FED DRAIN TO EXPEL MOISTURE FROM CONDENSATION THAT CAN BUILD UP IN ELECTRICAL ENCLOSURES WHEN INSTALLED IN THE TOP OF AN ENCLOSURE IT ACTS A S A BREATHER ALLOWING AIR TO ENTER AND PREVENT A VACUUM WHICH CAN CAUSE THE DRAIN NOT TO FLOW PROPERLY. THEY ARE UL / CCSAUS / FM CERTIFIED FOR CLASS I CLASS I ZONE 1 & 2 CLASS III, TYPE 4 & 4X. ALSO, ATEX, IEC EX, EX DB IP66 WITH SUFFIX CEN. REVIEW EACH PART FOR HAZARDOUS RATING SUITABILITY AND NOTIFIED BODY. THE KB & KDB ARE OFFERED IN ALUMINUM, 300 SERIES STAINLESS STEEL AND 316 STAINLESS STEEL. THREAD SIZES TO 1/2 NPT AND METRIC SIZES M16 & M20.
• Category: Enclosure Drain & Pressure Breathers
• Full Technical Description: Breather Type; Aluminum (Body) Material; UL, CSA Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3 Enclosure; 1/2 Inch NPT Thread Size; Used on Kb/Kd Series Drain and Breathers; KB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Drain/Breather
• Unspsc: 39121321
• UPC 12 Digit: 783936381602
• SKU Name: klrk kb1b

Resources

• Manufacturer Spec Sheet
