Additional Information: Application Provides Access to Conductors for Pulling, Splicing and Maintenance in Hazardous Location

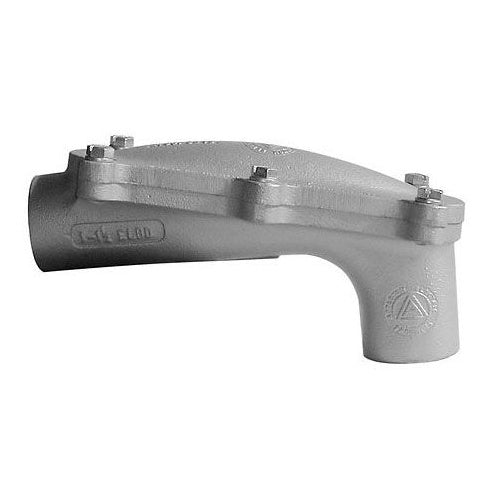

Catalog Number: ELBD150A
Brand Name: Unilet[R]
Model: ELBD
Type: Pulling
Trade Size: 1-1/2 Inch
Bend Angle: 90 Deg
Connection Type: Female
Material: Copper Free Aluminum
Catalog Description: EXPLOSIONPROOF CONDUIT PULLING ELBOW, TYPE PULLING, TRADE SIZE 1-1/2 INCH, BEND ANGLE 90 DEG, CONNECTION TYPE FEMALE, MATERIAL COPPER FREE ALUMINUM, FINISH EPOXY POWDER COATED, APPROVAL UL 886, CSA C22.2, APPLICATION TO PROVIDE ACCESS TO CONDUCTOR FOR PULLING, SPLICING AND MAINTENANCE IN HAZARDOUS LOCATION, USED ON THREADED METAL CONDUIT, SIZE 7.13 INCH H, CAPACITY 83 CU INCH
Category: Rigid Conduit Fittings - Aluminum
Full Technical Description: Copper-Free Aluminum, Neoprene (Gasket), Steel (Cover Screw) Material; Epoxy Powder Coated, Zinc Electroplated (Cover Screw) Finish; Tapered Threaded Hub Connection Type; UL 886 Approval; 1-1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Volume 83 Cubic Inch; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group D, Class I Zone 1 and 2 Group Iia, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7CD/9EFG; Used on Threaded Metal Conduit; Includes Reducing Bushing; Application Hazardous Location; Applicable Standard Nec/Cec, Federal Specification A-A-50563; ELBD Model
