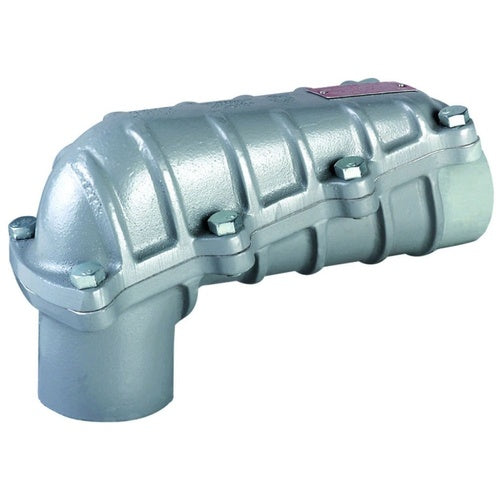

Killark XALB-5 1-1/2" Aluminum Explosion-Proof Conduit Body
Product Specifications
UPC: 78393688002
Capacity: 27 Cu Inch
Enclosure: Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III
Material: Copper Free Aluminum
Finish: Electrostatically Applied Powder Coated
Size: 7-3/4 Inch L x 3-15/16 Inch W x 4-1/16 Inch D
Approval: UL, CSA
Catalog Number: XALB-5
Model: XALB
Constructional Feature: Explosionproof
Configuration: LB
Hub Size: 1-1/2 Inch
Number Of Hubs: 2
Hub Location: 90 Deg
Access Opening: Top
Catalog Description: 1-1/2" XALB TYPE, ALUMINUM X SERIES CONDUIT BODY
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Copper Free Aluminum Material; 7-3/4 Inch L X 3-15/16 Inch W X 4-1/16 Inch D Size; Electrostatically Applied Powder Coated Finish; 1-1/2 Inch Hub Size; lb Configuration; 2 Hub(S); UL, CSA Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 27 Cu Inch Capacity; Explosionproof; 90 Deg Hub Location; Top Access Opening; XALB Model
Made In Usa: Yes
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
