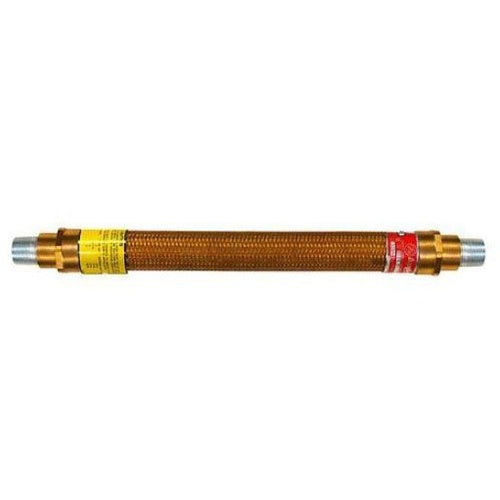

Appleton EXGJH-24 3/4X4 Flex Coupling

Overview

Appleton EXGJH-24 3/4X4 Flex Coupling

Product Specifications

• UPC: 78138131690
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Insulating Liner; Constructional Feature Watertight; Used On Rigid Metal Conduit and IMC
• Catalog Number: EXGJH-24
• Brand Name: Unilet[R]
• Model: EXGJH
• Trade Size: 3/4 Inch
• Fitting Material: Brass End
• Material: Bronze Braid, Brass Core
• End Type: (2) Male Nipple
• Length: 4 Inch
• Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 3/4 IN, OUTSIDE DIAMETER: 1-3/4 IN, FLEX LENGTH:24 IN, RADIUS: 12 IN BENDING, FLEXIBILITY: RIGID AND IMC, MATERIAL: OUTER BRONZE BRAID AND INNER BRASS CORE WITH INSULATING LINER, END TYPE: (2) MALE NIPPLES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 4 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib Iic, Class III Enclosure; 3/4 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 12 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381316903
• SKU Name: app exgjh24
