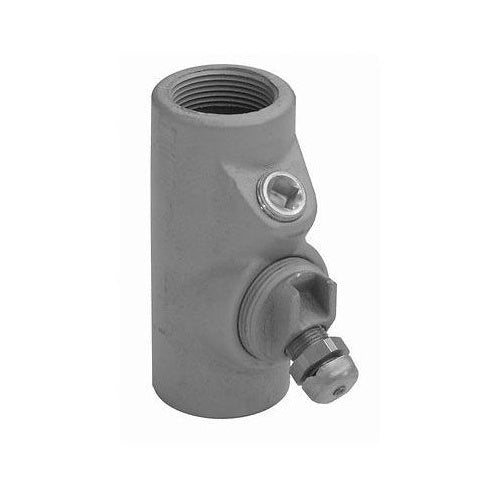

Appleton EYM-300 3" Malleable Conduit Seal

Overview

Appleton EYM-300 3" Malleable Conduit Seal

Product Specifications

• UPC: 78138113552
• Approval: UL, CSA
• Additional Information: Overall Dimension 10.37 Inch Length x 4.13 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: EYM-300
• Model: EYM
• Turning Radius: 3.13 Inch
• Trade Size: 3 Inch
• Connection Type: Male/Female
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Group B C D, Class II Group E F G, Class III
• Catalog Description: UNILETS EY SERIES 25 PCT FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: FEMALE THREADE
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Vertical/Horizontal Mounting Position; 3.13 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 10.37 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381135528
• SKU Name: app eym300
