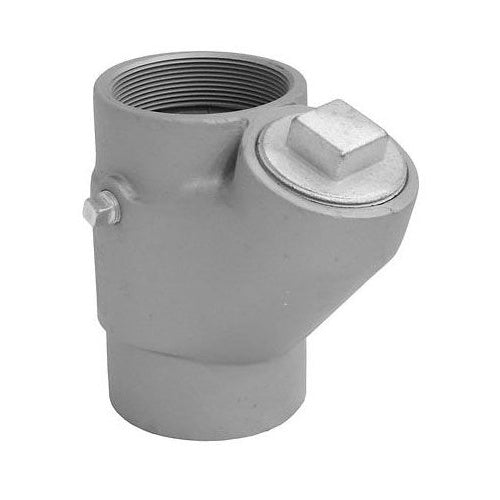

Appleton EYS86 3" Malleable Drain Seal

Overview

Appleton EYS86 3" Malleable Drain Seal

Product Specifications

• UPC: 78138162123
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location; Includes Removable Male Nipple
• Catalog Number: EYS86
• Brand Name: Unilet[R]
• Model: EYS
• Turning Radius: 3.13 Inch
• Trade Size: 3 Inch
• Connection Type: Male, Female
• Material: Epoxy Powder Coated Dichromate Zinc Electroplated Grayloy Iron
• Mounting Position: Horizontal/Vertical
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL AND HORIZONTAL SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED MNPT
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Vertical/Horizontal Mounting Position; 3.13 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 8.5 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381621236
• SKU Name: app eys86
