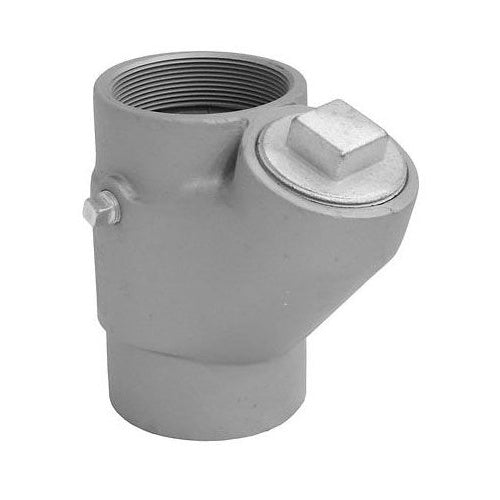

Appleton EYS1 1/2" Female Gray Conduit Seal

Overview

Appleton EYS1 1/2" Female Gray Conduit Seal

Product Specifications

• UPC: 78138170468
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Catalog Number: EYS1
• Brand Name: Unilet[R]
• Model: EYS
• Turning Radius: 1.63 Inch
• Trade Size: 1/2 Inch
• Connection Type: Female
• Material: Epoxy Powder Coated Chromate Zinc Electroplated Grayloy Iron
• Mounting Position: Vertical
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL SEALING FITTING, SIZE: 1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FNPT, TURNING RADIUS: 1.63 IN, LENGTH: 3
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Vertical Mounting Position; 1.63 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 2.38 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381704687
• SKU Name: app eys1
