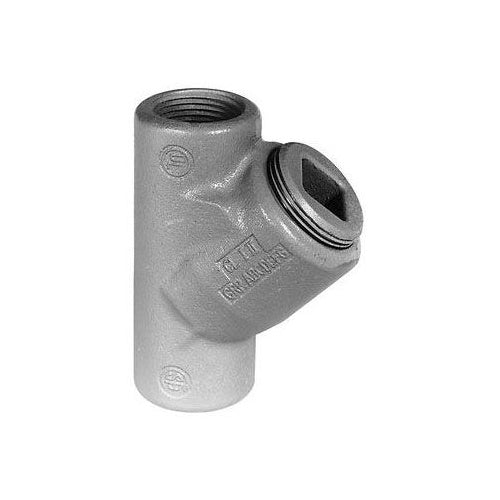

Appleton EYSF50 1/2" Malleable Conduit Seal

Overview

Appleton EYSF50 1/2" Malleable Conduit Seal

Product Specifications

• UPC: 78138133045
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Overall Dimension 3.25 Inch Length x 1.13 Inch Width; Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System, Hazardous Location; Used On Threaded Rigid Me
• Catalog Number: EYSF50
• Brand Name: Appleton
• Model: EYSF
• Type: Hub
• Turning Radius: 1.81 Inch
• Trade Size: 1/2 Inch
• Connection Type: Female, Female
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING, SIZE: 1/2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FNPT, TURNING RADIUS: 1.81 IN, LENGTH: 3-
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1/2 Inch Trade Size; Vertical Mounting Position; 1.81 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381330459
• SKU Name: app eysf50
