Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL 1203, CSA C22.2
Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Overall Dimension 3.69 Inch Length x 1.5 Inch Width; Used On Threaded Rigid Metal Conduit and IMC
Catalog Number: EYS2
Brand Name: Appleton
Model: EYS
Turning Radius: 1.91 Inch
Trade Size: 3/4 Inch
Connection Type: Female
Material: Epoxy Powder Coated Chromate Zinc Electroplated Grayloy Iron
Mounting Position: Vertical

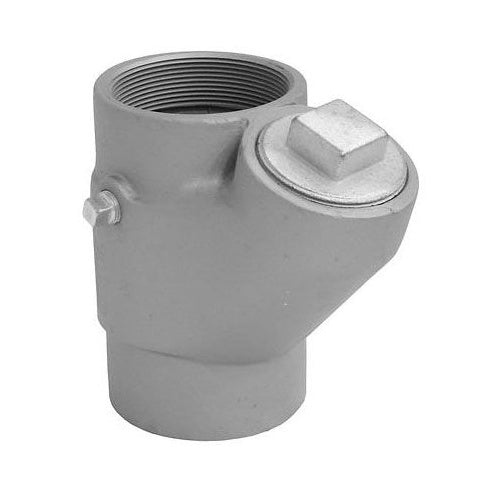

Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL SEALING FITTING, SIZE: 3/4 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FNPT, TURNING RADIUS: 1.91 IN, LENGTH: 3
Category: Steel Sealing Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical Mounting Position; 1.91 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.69 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
