Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
Approval: UL 1203, CSA C22.2
Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Overall Dimension 3.63 Inch Length x 1.38 Inch Width; Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System, Hazardous Location; Used On Threaded Rigid Me
Catalog Number: EYSF75
Brand Name: Appleton
Model: EYSF
Type: Hub
Turning Radius: 2.25 Inch
Trade Size: 3/4 Inch
Connection Type: Female, Female
Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron

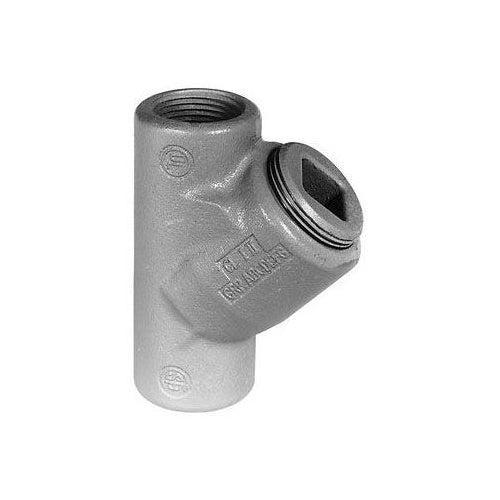

Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING, SIZE: 3/4 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FNPT, TURNING RADIUS: 2-1/4 IN, LENGTH: 3
Category: Steel Sealing Bodies
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Vertical Mounting Position; 2.25 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.63 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
