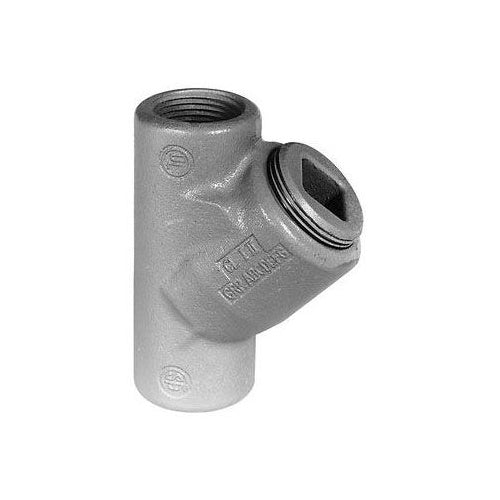

Appleton EYSF-100 1" Malleable Conduit Seal

Overview

Appleton EYSF-100 1" Malleable Conduit Seal

Product Specifications

• UPC: 78138133065
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Overall Dimension 4.25 Inch Length x 1.75 Inch Width; Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System, Hazardous Location; Used On Threaded Rigid Me
• Catalog Number: EYSF-100
• Brand Name: Appleton
• Model: EYSF
• Type: Hub
• Turning Radius: 2.38 Inch
• Trade Size: 1 Inch
• Connection Type: Female, Female
• Material: Malleable Iron
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING, SIZE: 1 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED FNPT, TURNING RADIUS: 2.38 IN, LENGTH: 1-
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical Mounting Position; 2.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381330657
• SKU Name: app eysf100
