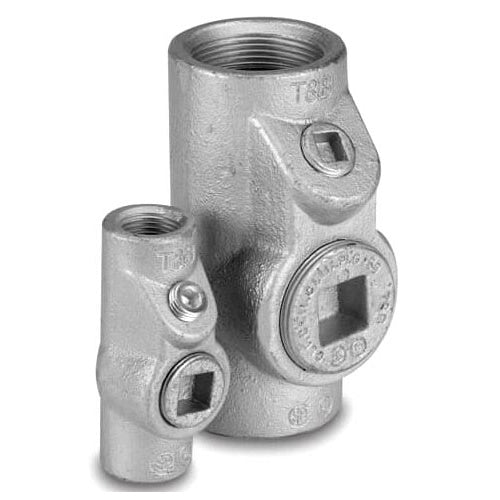

T&B EYS3-TB 1" Eys Drain Seal, Iron, Vertical Explosion-Proof

Overview

T&B EYS3-TB 1" Eys Drain Seal, Iron, Vertical Explosion-Proof

Product Specifications

• UPC: 78621068631
• Approval: UL 886, CSA C22.2
• Catalog Number: EYS3-TB
• Model: EYS
• Type: HUB
• Turning Radius: 2.4 INCH
• Connection Type: FEMALE, FEMALE
• Material: ZINC PLATED ALUMINUM ACRYLIC PAINTED DUCTILE IRON
• Mounting Position: HORIZONTAL/VERTICAL
• Enclosure: CLASS I DIV 1 AND 2 GROUP A B C D
• Catalog Description: 1 INCH EYS SEALING FITTING, BODY DUCTILE IRON, PLUG GRAY IRON, NIPPLE STEEL, VERTICAL ONLY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Hub Type; Zinc Plated Aluminum Acrylic Painted Ductile Iron Material; Female, Female Connection Type; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group A B C D Enclosure; Horizontal/Vertical Mounting Position; 2.4 Inch Turning Radius; EYS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 786210686318
• SKU Name: t&b eys3tb

Resources

• Product Spec Sheet
