Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
Shape: Deep
Configuration Type: FD
Approval: UL, CSA
Additional Information: Includes Internal Ground Screw; Application Commercial and Industrial; Applicable Standard NEMA FB-1
Catalog Number: FD1100
Brand Name: Unilets[R]
Model: FD
Height: 6.31 Inch
Width: 2.81 Inch
Depth: 2.69 Inch
Capacity: 25 Cubic Inch
Number Of Gangs: 1

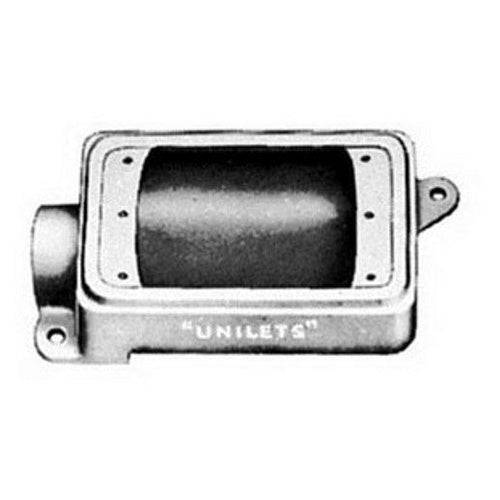

Catalog Description: UNILETS FD DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: MALLEABLE IRON, SIZE: 1 IN, CABLE ENTRY: (1) 1 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2.69 IN, FINISH: TRIPLE-CO
Category: Steel Fs & Fd Type Boxes & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 6.31 Inch; 2.69 Inch; Deep Shape; 1 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; (2) Lug Mounting Hardware; FD Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
