Material: Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron
Shape: Deep
Configuration Type: FD
Approval: UL 514A, CSA C22.2, FS W-C-586D
Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
Catalog Number: FD-3M
Model: FD
Type: Dead End
Height: 4-5/8 Inch
Width: 2-7/8 Inch
Depth: 2-7/8 Inch
Capacity: 28 Cu Inch
Number Of Gangs: 1

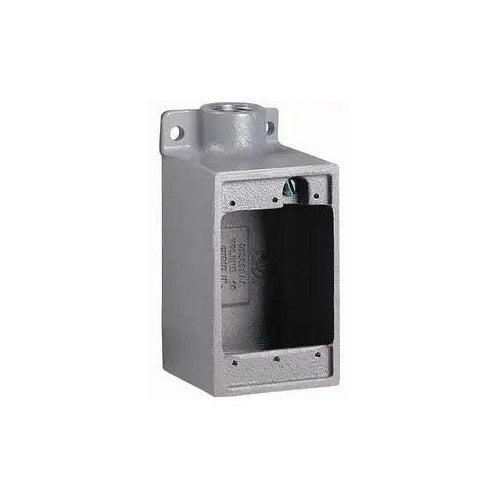

Catalog Description: 1"IRON, DEEP DEAD END DEVICE BOX
Category: Steel Fs & Fd Type Boxes & Covers
Full Technical Description: Dead End Type; Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron Material; 2-7/8 Inch; 4-5/8 Inch; 2-7/8 Inch; Deep Shape; 1 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 28 Cu Inch Capacity; (1) End Hub Location; FD Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FD Model
Manufacturer: Killark Electric Manufacturing Co.
Manufacturer Brand: Killark Electric Manufacturing Co.
