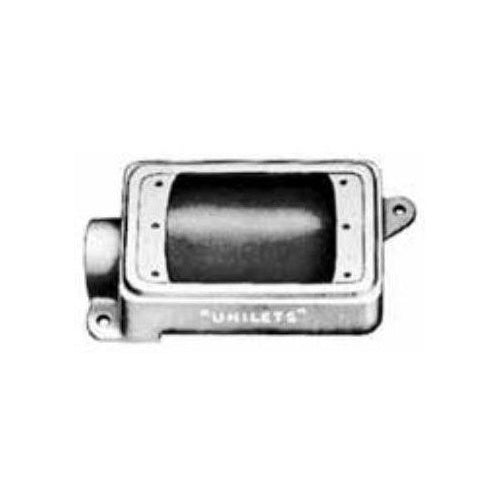

Appleton FD-1-75L 1-Gang Malleable FD Box w/Lugs

Overview

Appleton FD-1-75L 1-Gang Malleable FD Box w/Lugs

Product Specifications

• UPC: 78138132242
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 3/4 Inch
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Shape: Deep
• Configuration Type: FD
• Approval: UL, CSA
• Additional Information: Includes Internal Ground Screw; Application Commercial and Industrial; Applicable Standard NEMA FB-1
• Catalog Number: FD-1-75L
• Brand Name: Unilets[R]
• Model: FD
• Height: 5.88 Inch
• Width: 2.81 Inch
• Depth: 2.69 Inch
• Capacity: 25 Cubic Inch
• Number Of Gangs: 1
• Catalog Description: UNILETS FD DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 1, MATERIAL: MALLEABLE IRON, SIZE: 3/4 IN, CABLE ENTRY: (1) 3/4 IN HUB, MOUNTING: (2) 5/16 DIAMETER LUGS, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 6.06 IN, WIDTH: 2.
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 5.88 Inch; 2.69 Inch; Deep Shape; 3/4 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; (2) Lug Mounting Hardware; FD Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381322423
• SKU Name: app fd175l
