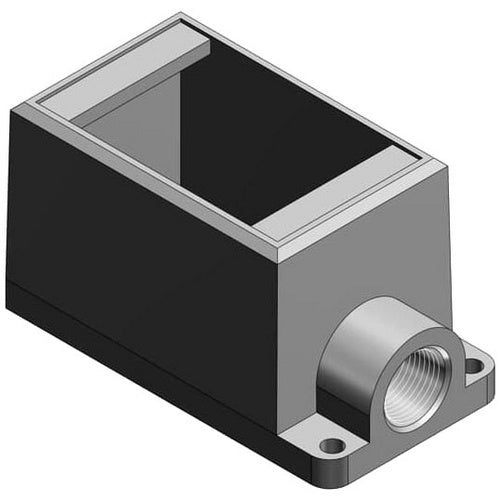

T&B FD2-TB 3/4" , 1G-Deep Box, Iron, Dead-End

Overview

T&B FD2-TB 3/4" , 1G-Deep Box, Iron, Dead-End

Product Specifications

• UPC: 78621019705
• Number Of Hubs: 1
• Hub Location: End
• Hub Size: 3/4 Inch
• Material: Aluminum Acrylic Painted Over Zinc Plated Iron
• Shape: Deep
• Configuration Type: FD
• Mounting Hardware: (2) Lug
• Approval: UL 514A, CSA C22.2
• Additional Information: Color Gray
• Catalog Number: FD2-TB
• Brand Name: T&B
• Model: FD
• Type: Dead End
• Height: 5.16 Inch
• Width: 2.75 Inch
• Depth: 2.81 Inch
• Number Of Gangs: 1
• Catalog Description: 3/4 INCH DEEP 1 GANG CAST DEVICE BOX, GRAY IRON ZINC PLATED, DEAD END, SUITABLE FOR WET LOCATIONS WHEN USED WITH GASKETED COVERS
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Dead End Type; Aluminum Acrylic Painted Over Zinc Plated Iron Material; 2.75 Inch; 5.16 Inch; 2.81 Inch; Deep Shape; 3/4 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A, CSA C22.2 Approval; (2) Lug Mounting Hardware; End Hub Location; FD Configuration Type; Color Gray; FD Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 786210197050
• SKU Name: t&b fd2tb

Resources

• Manufacturer Spec Sheet
