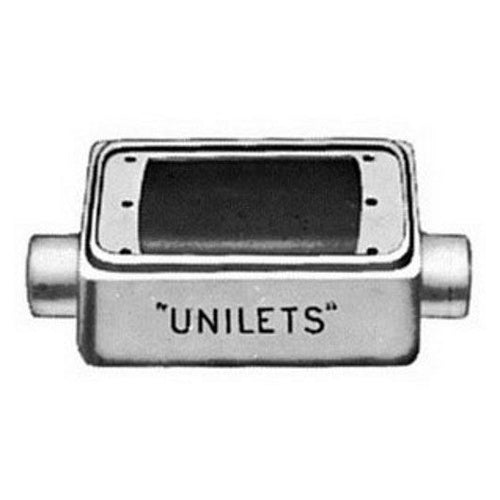

Appleton FSC175A 1-Gang Aluminum FSC Box

Appleton FSC175A 1-Gang Aluminum FSC Box

Out of stock

Regular price $40.21 USD
Regular price Sale price $40.21 USD
Sale Sold out
Quantity

Overview

Appleton FSC175A 1-Gang Aluminum FSC Box

Product Specifications

  • UPC: 78138134375
  • Number Of Hubs: 2
  • Hub Location: (1) Each Ends
  • Hub Size: 3/4 Inch
  • Material: Epoxy Powder Coated Copper-Free Aluminum
  • Shape: Shallow
  • Configuration Type: FSC
  • Mounting Hardware: Not Included
  • Approval: UL 514A
  • Additional Information: Application Accommodate Wiring Device, Serve as Pull Box for Conductor, Indoor/Outdoor
  • Catalog Number: FSC175A
  • Brand Name: Appleton
  • Model: FSC
  • Height: 5.88 Inch
  • Width: 2.81 Inch
  • Depth: 2 Inch
  • Capacity: 18 Cubic Inch
  • Number Of Gangs: 1
  • Catalog Description: UNILETS FSC SHALLOW DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 2, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 3/4 IN, CABLE ENTRY: (2) 3/4 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81
  • Category: Aluminum Fs&Fd Type Boxes & Covers
  • Full Technical Description: Epoxy Powder Coated Aluminum Material; 2.81 Inch; 5.88 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A Approval; 18 Cubic Inch Capacity; Not Included Mounting Hardware; FSC Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FS Model
  • Manufacturer: APPLETON ELECTRIC COMPANY
  • Manufacturer Brand: Appleton Electric
  • Sub Category: Cast Device Box
  • Unspsc: 39121315
  • UPC 12 Digit: 781381343756
  • SKU Name: app fsc175a
