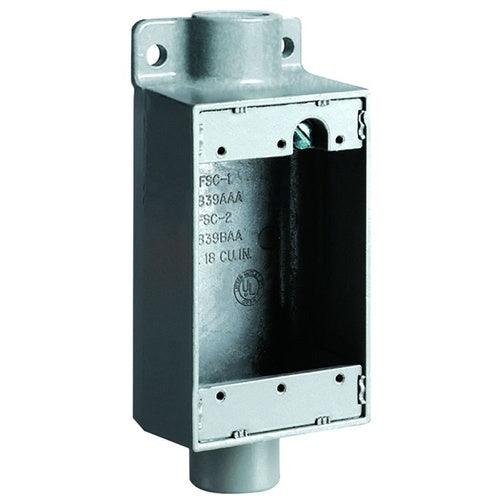

Killark FSC-2 Fsc" 3/4" Aluminum Shallow Device Box

Overview

Killark FSC-2 Fsc" 3/4" Aluminum Shallow Device Box

Product Specifications

• UPC: 78393619018
• Number Of Gangs: 1
• Number Of Hubs: 2
• Hub Location: (1) Top, (1) Bottom
• Hub Size: 3/4 Inch
• Material: Electrostatically Applied Powder Coated Copper-Free Aluminum
• Shape: Shallow
• Configuration Type: FSC
• Mounting Hardware: Lug
• Approval: UL 514A, CSA C22.2
• Additional Information: Applicable Standard Federal Specification W-C-586D, NEMA FB-1
• Catalog Number: FSC-2
• Brand Name: Killark
• Model: FSC
• Type: Feed-Through
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2 Inch
• Capacity: 18 Cubic Inch
• Catalog Description: FSC-2 - " ALUMINUM, SHALLOW FEED THRU DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Feed-Through Type; Electrostatically Applied Powder Coated Copper-Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A, CSA C22.2 Approval; 18 Cubic Inch Capacity; Lug Mounting Hardware; (1) Top, (1) Bottom Hub Location; FSC Configuration Type; Applicable Standard Federal Specification W-C-586D, NEMA FB-1; FSC Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936190181
• SKU Name: klrk fsc2

Resources

• Manufacturer Spec Sheet
• Technical Drawing
