Additional Information: Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
Catalog Number: GRX50-A
Brand Name: Unilet[R]
Model: GRX
Style: X
Hub Size: 1/2 Inch
Hub Type: External
Number Of Hubs: 4
Hub Location: (4) Side

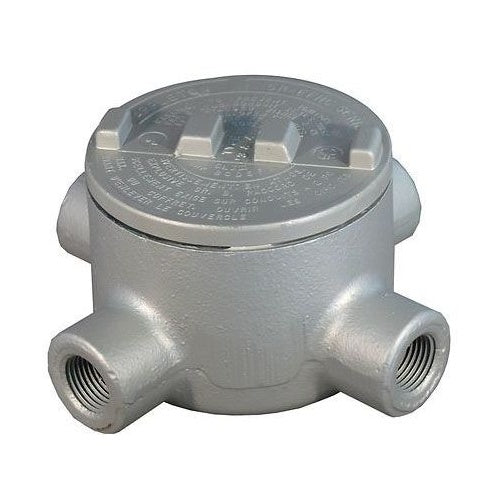

Catalog Description: UNILETS OUTLET BOX, NUMBER OF OUTLET: 4, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, SIZE: 1/2 IN, CABLE ENTRY: (4) 1/2 IN GRTX HUB, CUBIC CAPACITY: 18 CU-IN, KNOCKOUTS: NO, COVER OPENING: 3.38 IN, FORM NUMBER: 1, HEIGHT: 3-3/4
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; Round Shape; 1/2 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III, NEMA 3/4/4X Enclosure; Externally Threaded Cover Type; 18 Cubic Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 3.38 Inch Cover Opening Diameter; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Aluminum Cover, Internal Ground Screw and O-ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard Nec/Cec; GR Model
