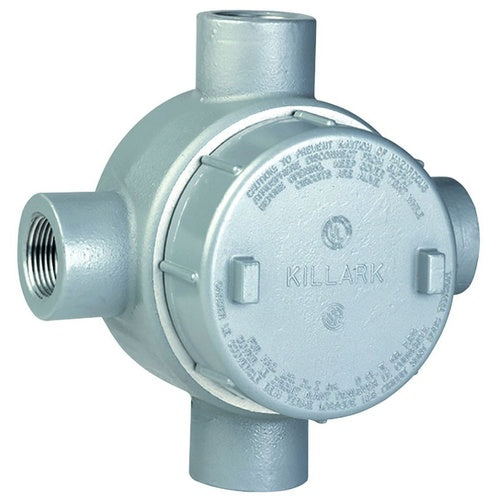

Killark GECXT-1 1/2" Explosion-Proof Conduit Body

Overview

Killark GECXT-1 1/2" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393621014
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 2-11/16 Inch
• Enclosure: Class I Group C D, Class I Zone 1 Group IIA IIB, Class II, Class III
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Grounding Screw
• Catalog Number: GECXT-1
• Model: GEC
• Style: X
• Hub Size: 1/2 Inch
• Hub Type: External
• Number Of Hubs: 4
• Hub Location: (4) Side
• Capacity: 19 Cu Inch
• Catalog Description: " GEC OUTLET BODY X TYPE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 1/2 Inch Hub Size; 4 Hub(S); UL 886, CSA C22.2 Approval; Class I Group C D, Class I Zone 1 Group Iia Iib, Class II, Class III Enclosure; Internally Threaded Cover Type; 19 Cu Inch Capacity; X Style; (4) Side Hub Location; External Hub Type; 2-11/16 Inch Cover Opening Diameter; Includes Grounding Screw; GEC Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936210148
• SKU Name: klrk gecxt1

Resources

• Manufacturer Spec Sheet
