Additional Information: Capacity 4 Cubic Inch; Application Serve as Pulling Fitting, Make Bend in Conduit System, Provide Opening for Splicing, Connect and Change Direction of Conduit Run, Allow Connection for Branch Run, Permit Access to Conductor for Maintenance; Applicable St
Catalog Number: LB17
Brand Name: FM7[TM]
Access Opening: Back
Configuration: LB
Cover Type: Epoxy Powder Coated Grayloy-Iron
Hub Location: 90 Degree
Number Of Hubs: 2
Hub Size: 1/2 Inch

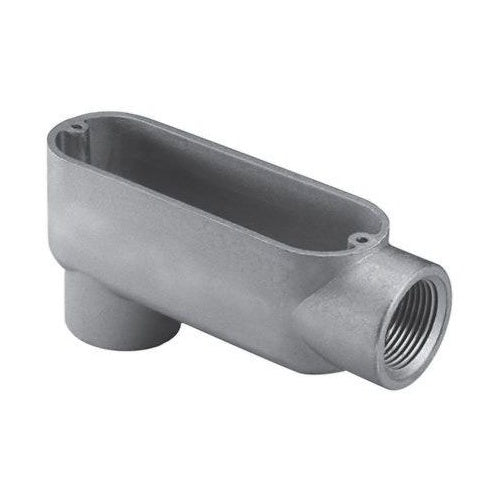

Catalog Description: FM7 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 7, LENGTH: 4.56 IN, HEIGHT: 2-1/4 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FEMALE T
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 4.56 Inch Length X 2.25 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Capacity 4 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
