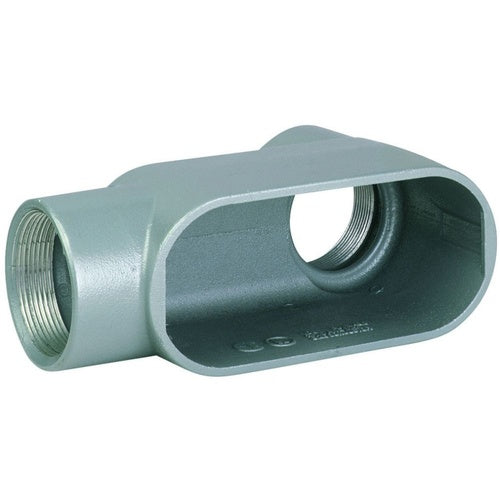

Killark LB17 Outlet Body 1/2" Fe LB-Type

Overview

Killark LB17 Outlet Body 1/2" Fe LB-Type

Product Specifications

• UPC: 78393601100
• Hub Size: 1/2 Inch
• Size: 4-11/16 Inch L x 2-1/4 Inch W x 1-1/2 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: LB17
• Brand Name: DURALOY[R]
• Model: 7
• Access Opening: Back
• Configuration: LB
• Cover Type: Stainless Steel
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Catalog Description: DURALOY 7 SERIES - IRON CONDUIT BODY - LB TYPE - HUB SIZE 1/2 INCH - VOLUME 4.0 CUBIC INCHES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 4-11/16 Inch L X 2-1/4 Inch W X 1-1/2 Inch H Size; Rigid Conduit/Imc Used on; 1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; lb Configuration; 2 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; 90 Deg Hub Location; Form 7 Form Type; Back Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936011004
• SKU Name: klrk lb17
