Additional Information: Enclosure Rating Class I Div 2; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors for Maintenance,

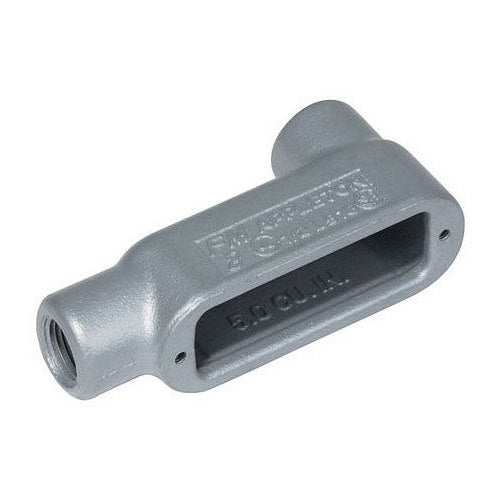

Catalog Description: FM8 GRAYLOY-IRON UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 8, LENGTH: 5-3/4 IN, WIDTH: 2-1/2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAP
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 5.75 Inch Length X 2.5 Inch Width Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Left Side Access Opening; FM8[TM] Brand; Wire Size (3) 6 AWG; Capacity 8 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
