Size: 5-3/4 Inch L x 2-1/2 Inch W x 1-21/32 Inch H
Installation: Threaded (IMC/Rigid)
Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy
Form Type: Form 8
Approval: UL, CSA
Used On: Rigid Conduit/IMC
Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
Catalog Number: LL28
Brand Name: DURALOY[R]
Model: 8
Access Opening: Left Side
Configuration: LL
Cover Type: Stamped and Cast Stainless Steel Screw-On
Hub Location: 90 Deg
Number Of Hubs: 2

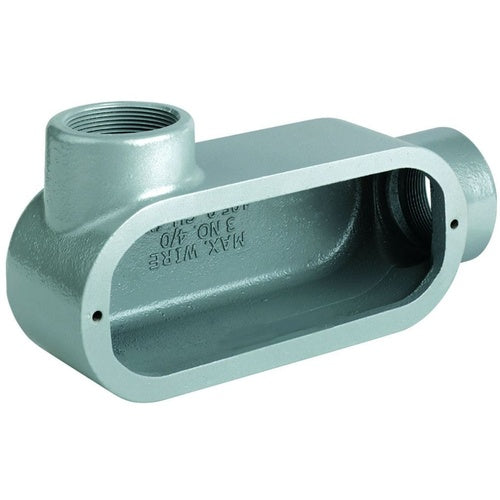

Catalog Description: 3/4" LL HUB, IRON DURALOY 8 CONDUIT BODY
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Electrostatically Applied Powder Coated Over Electro Zinc and Chromate Sealant Class 30 Gray Iron Alloy Material; 5-3/4 Inch L X 2-1/2 Inch W X 1-21/32 Inch H Size; Rigid Conduit/Imc Used on; 3/4 Inch Hub Size; Threaded (Imc/Rigid) Installation; LL Configuration; 2 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; 90 Deg Hub Location; Form 8 Form Type; Left Side Access Opening; DURALOY[R]8 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 8 Model
Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
Manufacturer Brand: Killark Electric Manufacturing Co.
