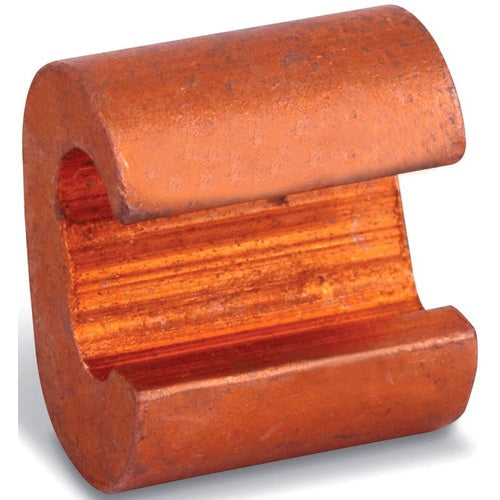

Blackburn BC4040 Copper Compression Connector C-Crimp 3/0-4/0 3/0-4/0

Overview

Blackburn BC4040 Copper Compression Connector C-Crimp 3/0-4/0 3/0-4/0

Product Specifications

• UPC: 78378612460
• Maximum Tap Conductor Size: 3/0 AWG Solid
• Die Index: F/D3
• Body Material: High Conductivity Copper
• Approval: UL 467, CSA
• Additional Information: Overall Dimension 1-5/16 Inch Length x 1-1/16 Inch Height; Application Tools TBM14M, 13100A, TBM15I
• Catalog Number: BC4040
• Brand Name: Blackburn
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 4/0 AWG Stranded
• Maximum Run Conductor Size: 3/0 AWG Stranded
• Minimum Tap Conductor Size: 4/0 AWG Stranded
• Catalog Description: C-CRIMPS COPPER COMPRESSION CONNECTOR, RUN: 3/0 STR - 4/0 STR, TAP 3/0 STR - 4/0 STR, LENGTH 1-1/16 INCHES, HEIGHT 1-5/8 INCHES
• Category: Large Terminals & Connectors
• Full Technical Description: 4/0 AWG Stranded min. Run Conductor Size; 3/0 AWG Stranded Max. Run Conductor Size; 4/0 AWG Stranded min. Tap Conductor Size; 3/0 AWG Solid Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 467, CSA Approval; High Conductivity Copper Body Material; F/D3 Die Index; 1 Tap(S); EZGROUND[TM] Brand; Overall Dimension 1-5/16 Inch Length X 1-1/16 Inch Height; Application Tools TBM14M, 13100A, TBM15I
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 783786124602
• SKU Name: blkbrn bc4040
