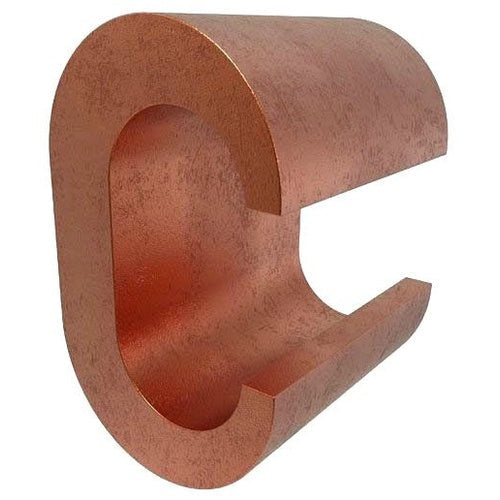

Ilsco ULT-12-Z 4/0Str Copper Line Tap

Overview

Ilsco ULT-12-Z 4/0Str Copper Line Tap

Product Specifications

• UPC: 78366993083
• Die Index: D3
• Body Material: High Strength Copper Alloy
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: RoHS Compliant; Overall Dimension 1.61 Inch Length x 1 Inch Width x 1.2 Inch Height; Temperature Rating 90 Deg C
• Catalog Number: ULT-12-Z
• Model: ULT
• Shape: C
• Conductor Material: Copper
• Minimum Run Conductor Size: 3/0 AWG Stranded
• Maximum Run Conductor Size: 4/0 AWG Stranded
• Minimum Tap Conductor Size: 3/0 AWG Stranded
• Maximum Tap Conductor Size: 4/0 AWG Stranded
• Catalog Description: PERMAGROUND COPPER GROUNDING C CRIMP, MAIN CONDUCTOR RANGE 4/0-3/0 SOL, TAP RANGE 4/0-3/0 SOL, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: 3/0 AWG Stranded min. Run Conductor Size; 4/0 AWG Stranded Max. Run Conductor Size; 3/0 AWG Stranded min. Tap Conductor Size; 4/0 AWG Stranded Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; High Strength Copper Alloy Body Material; D3 Die Index; Permaground Brand; RoHS Compliant; Overall Dimension 1.61 Inch Length X 1 Inch Width X 1.2 Inch Height; Temperature Rating 90 Deg C; ULT Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Tap
• Unspsc: 39121448
• UPC 12 Digit: 783669930832
• SKU Name: ult12z ilsco
