Additional Information: RoHS Compatible; Dimension 1 Inch L x 0.36 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 600 V; Wire Strip Length 19/64 Inch; Maximum Insulation Diameter 0.26 Inch
Catalog Number: BA10E10
Brand Name: VINYLUG[TM]
Model: BA
Type: Funnel Entry, Light Duty
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Color: Yellow
Insulation Type: PVC Insulated

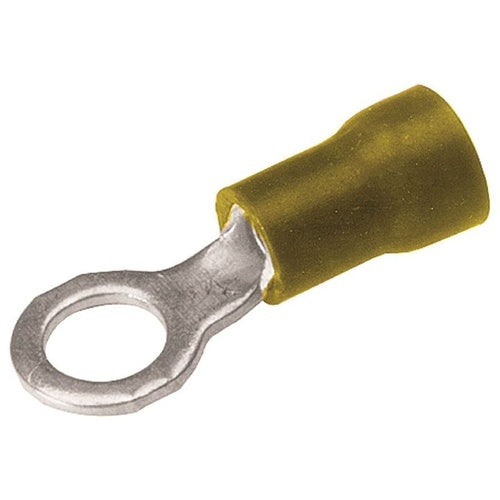

Catalog Description: COPPER TERMINAL, RING TONGUE, 12-10 AWG, #8-#10 STUD, VINYL INSULATED, TIN PLATED.
Category: Large Terminals & Connectors
Full Technical Description: Funnel Entry, Light Duty Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #8 to #10 Stud Size; PVC Insulated Insulation Type; VINYLUG[TM] Brand; RoHS Compatible; Dimension 1 Inch L X 0.36 Inch W; Material Electrolytic Tin Plated Copper; Voltage Rating 600 V; Wire Strip Length 19/64 Inch; Maximum Insulation Diameter 0.26 Inch; BA Model
Made In Usa: Yes
Manufacturer: Burndy Products
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
