Burndy BA10EL8 12-10 Insulated Fork Lug

Overview

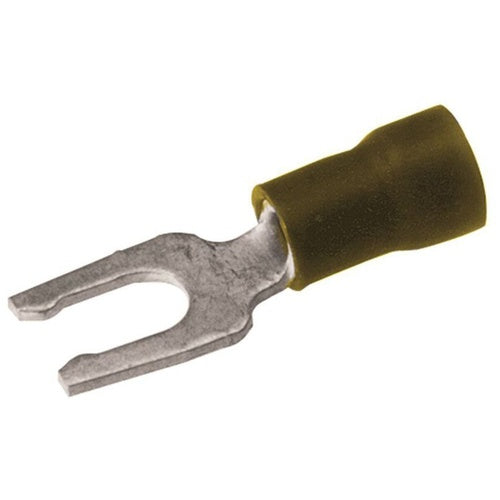

Burndy BA10EL8 12-10 Insulated Fork Lug

Product Specifications

• Catalog Description: VINYL LOCKING FORK TERMINAL FOR 12 - 10 AWG.
• Category: Large Terminals & Connectors
• Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 1000 Per Reel Standard Package; #6 to #8 Stud Size; Polyvinylchloride Insulated Insulation Type; VINYLUG[T], BURNDY[R] Brand; RoHS Compatible; Voltage Rating 600 V; Size 0.98 Inch L X 0.31 Inch W; Wire Strip Length 19/64 Inch; Maximum Insulation Diameter 0.26 Inch; Material Electro Tin Plated Copper; Installation Tool Y10-22 Plier, MRE1022NV/MR8-89-1/MR15 Ratchet
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Fork Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810026892
• SKU Name: bur ba10el8

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
