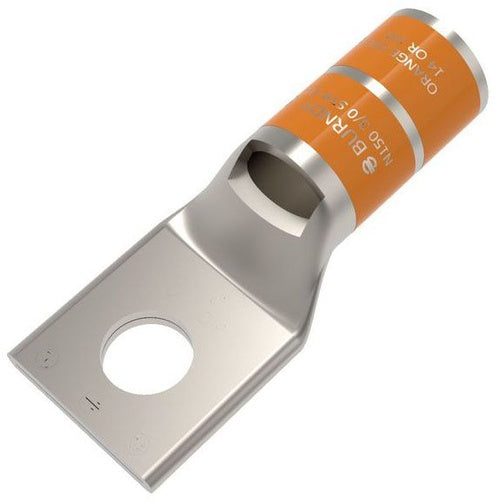

Catalog Description: 3/0 AWG CU, ONE HOLE, 1/2 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, ORANGE COLOR CODE, 14 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro Tin Plated Copper Material; Orange Color; 2.54 Inch Overall Length; 1 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 3/0 AWG Stranded (Code), 150 (Navy) Conductor Size; 1/2 Inch Stud Size; 14 Die Index; 0.91 Inch Width X 0.13 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; Hylug , Hydent Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 1-1/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model
Made In Usa: Yes
Manufacturer: Burndy Products
Manufacturer Brand: Burndy Products
