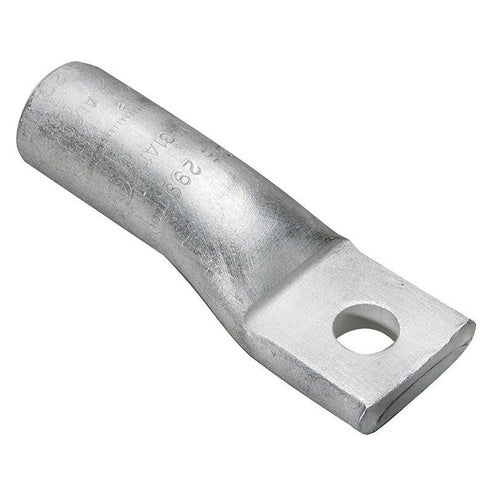

Catalog Description: 2 AWG, AL TERMINAL, ONE HOLE, 3/8", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 348 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Aluminum Material; Pink Color; 2.56 Inch Overall Length; 1.12 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/B, CSA Approval; 600 V to 35 kV Voltage Rating; 2 AWG Aluminum (Code), 2 AWG Stranded Copper (Code) Conductor Size; 3/8 Inch Stud Size; 348 Die Index; 0.88 Inch W X 0.16 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Hylug Brand; RoHS Compliant; Wire Strip Length 1-1/8 Inch; Includes Inspection Window, Color Coded Cap; Temperature Rating 90 Deg C; TYPE YA-A Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
