Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 1 3/4 INCH; TEMPERATURE RATING 90 DEG C
Catalog Number: YA30A3
Brand Name: HYLUG[TM]
Model: YA-A
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 300 KCMIL Stranded (Code)
Barrel Type: Standard, Straight
Barrel Length: 1.53 Inch

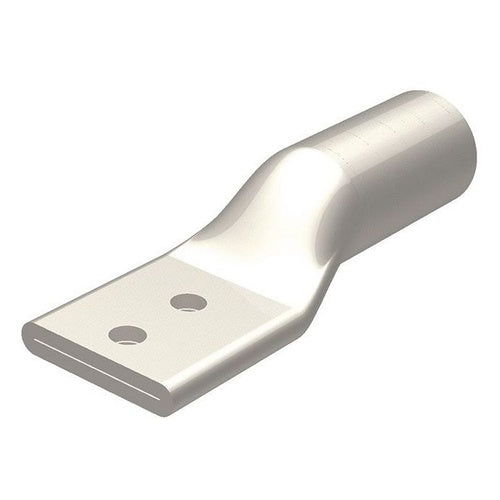

Catalog Description: 300 KCMIL , AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 470 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro Tin Plated Wrought Aluminum Material; Blue Color; 5.64 Inch Overall Length; 1.53 Inch Barrel Length; Copper/Aluminum Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 300 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 470 Die Index; 1.38 Inch Width X 0.36 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Wire Strip Length 1 3/4 Inch; Temperature Rating 90 Deg C; YA-A Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
