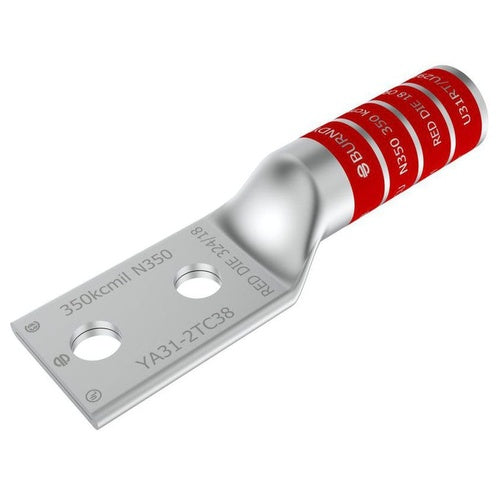

Burndy YA31-2N 350Mcm Copper 2-Hole Lug

Overview

Burndy YA31-2N 350Mcm Copper 2-Hole Lug

Product Specifications

• UPC: 78181050520
• Pad Size: 1.29 Inch Width x 0.18 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Red
• Die Index: 18/324
• Material: Electro-Tin Plated Copper
• Overall Length: 5.69 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 2-1/16 Inch; Includes Inspection Window; Temperature Rating 90 Deg C
• Catalog Number: YA312N
• Brand Name: Burndy
• Model: YA-2N
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 350 KCMIL Stranded
• Barrel Type: Long, Straight
• Barrel Length: 2 Inch
• Catalog Description: 350 KCMIL CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 18 OR 324 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Red Color; 5.69 Inch Overall Length; 2 Inch Barrel Length; Copper Conductor Material; UL 468A/B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 350 kcmil Stranded Conductor Size; 1/2 Inch Stud Size; 18/324 Die Index; 1.29 Inch Width X 0.18 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Hylug Brand; RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 2-1/16 Inch; Includes Inspection Window; Temperature Rating 90 Deg C; YA-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810505205
• SKU Name: bur ya312n
