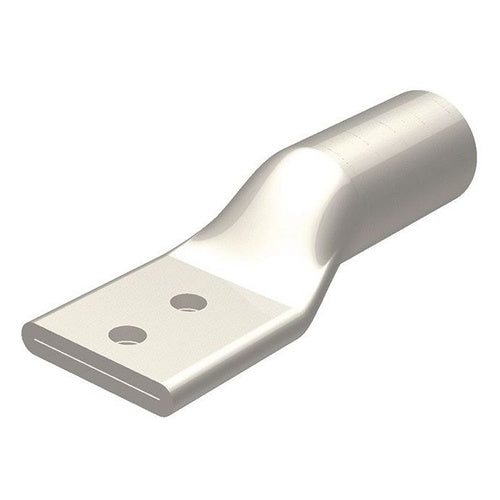

Catalog Description: 1000 KCMIL, AL TERMINAL, TWO HOLE, 1/2" STUD SIZE, 1-3/4" HOLE SPACING, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 302 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Brown Color; 7.76 Inch Overall Length; 2.74 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 1000 kcmil (Aluminum), 1000 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 302 Die Index; 1.65 Inch W X 0.55 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 3 Inch; Cable Entry Type Beveled Entry; YA-A Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
