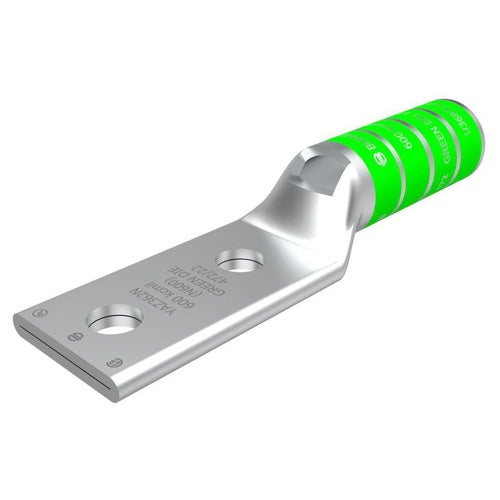

Burndy YAZ362N 600Kcm 2-Hole Long Lug

Overview

Burndy YAZ362N 600Kcm 2-Hole Long Lug

Product Specifications

• UPC: 78181022796
• Pad Size: 1.74 Inch Width x 0.26 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Green
• Die Index: 22/472
• Material: Electro Tin Plated Copper
• Overall Length: 6.55 Inch
• Approval: UL 468A/468B, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 2 3/4 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YAZ362N
• Brand Name: HYLUG[TM]
• Model: YAZ-2N
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 600 KCMIL Stranded (Code)
• Barrel Type: Long, Straight, Skived
• Barrel Length: 2.69 Inch
• Catalog Description: 600 KCMIL CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, LONG BARREL, INSPECTION WINDOW INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 22 OR 472 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Green Color; 6.55 Inch Overall Length; 2.69 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 600 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 22/472 Die Index; 1.74 Inch Width X 0.26 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Skived Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Wire Strip Length 2 3/4 Inch; Temperature Rating 90 Deg C; With Inspection Window; YAZ-2N Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810227961
• SKU Name: bur yaz362n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
