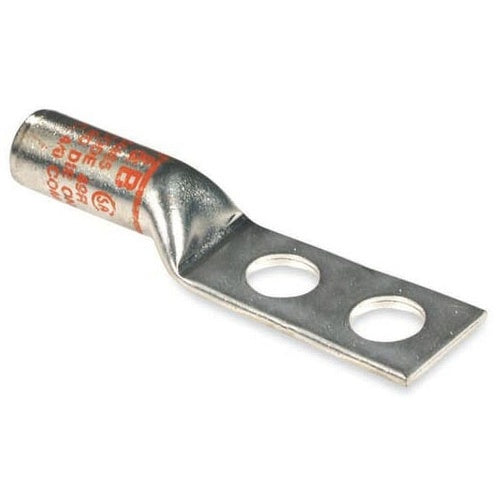

T&B 54485 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 600 Green

Overview

T&B 54485 Copper Tin Plated 2-Hole High-Voltage Lug Long Barrel 600 Green

Product Specifications

• UPC: 78621054485
• Pad Hole Spacing: 1.75 INCH
• Stud Size: 1/2 INCH
• Color: GREEN
• Die Index: 94R
• Material: TIN PLATED COPPER
• Overall Length: 5.83 INCH
• Approval: UL, CSA
• Catalog Number: 54485
• Model: 544
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 600 KCMIL
• Barrel Type: LONG, STRAIGHT, TAPERED
• Pad Size: 3 INCH L X 1.7 INCH W X 0.24 INCH THK
• Number Of Pad Holes: 2
• Catalog Description: COPPER TWO-HOLE HIGH VOLTAGE LUG, LONG BARREL, BLIND END, MAX 15KV, WIRE SIZE 600 KCMIL, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 94R, GREEN ROUNDING
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Green Color; 5.83 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 600 kcmil Conductor Size; 1/2 Inch Stud Size; 94R Die Index; 3 Inch L X 1.7 Inch W X 0.24 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight, Tapered Barrel Type; 544 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210544854
• SKU Name: t&b 54485
