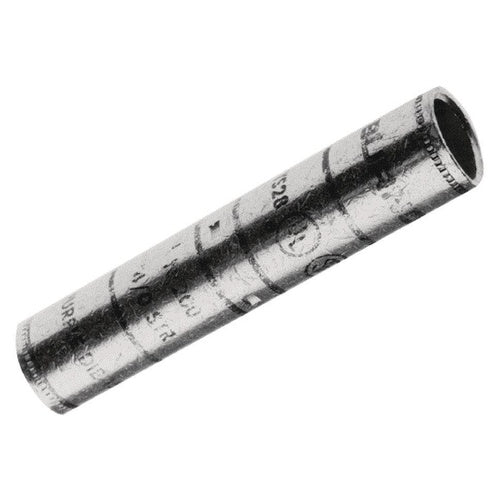

Burndy YS26 2/0Awg Copper Butt Splice

Overview

Burndy YS26 2/0Awg Copper Butt Splice

Product Specifications

• UPC: 78181050760
• Barrel Type: Long with Bevelled Entry, Chamfered
• Length: 3.3 Inch
• Outer Diameter: 0.56 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-9/16 Inch; Die Index 13; Temperature Rating 90 Deg C
• Catalog Number: YS26
• Brand Name: HYLINK[TM]
• Model: YS
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 2/0 AWG Stranded
• Conductor Material: Copper
• Color Code: Black
• Catalog Description: 2/0 AWG CU, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 13 DIE INDEX
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 3.3 Inch; 0.56 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 2/0 AWG Stranded Conductor Size; Black Color Code; Long With Bevelled Entry, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-9/16 Inch; Die Index 13; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810507605
• SKU Name: bur ys26

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
