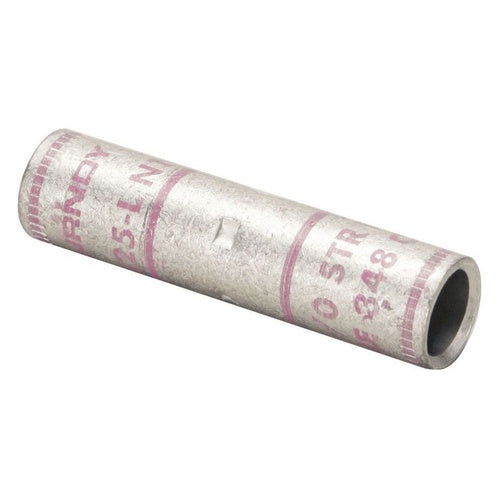

Burndy YS26LBOX 2/0 Str. Copper Butt Splice

Overview

Burndy YS26LBOX 2/0 Str. Copper Butt Splice

Product Specifications

• UPC: 78181055625
• Barrel Type: Standard with Chamfered
• Length: 2.17 Inch
• Outer Diameter: 0.56 Inch
• Body Material: Electro-Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1 Inch; Die Index 13; Temperature Rating 90 Deg C
• Catalog Number: YS26LBOX
• Brand Name: HYLINK[TM]
• Model: Type YS-L
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 2/0 AWG Stranded
• Conductor Material: Copper
• Color Code: Black
• Catalog Description: 2/0 AWG CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 13 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 2.17 Inch; 0.56 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Copper Body Material; 2/0 AWG Stranded Conductor Size; Black Color Code; Standard With Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1 Inch; Die Index 13; Temperature Rating 90 Deg C; TYPE YS-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810556252
• SKU Name: bur ys26lbox
