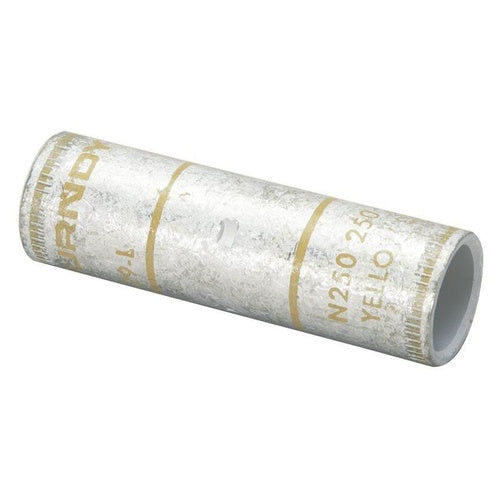

Burndy YS29-LBOX Copper Compression Splice

Overview

Burndy YS29-LBOX Copper Compression Splice

Product Specifications

• UPC: 78181055700
• Barrel Type: Short with Chamfered
• Length: 2.46 Inch
• Outer Diameter: 0.75 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL 486A/B, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index Number 16; Temperature Rating 90 Deg C
• Catalog Number: YS29LBOX
• Brand Name: Burndy
• Model: YS
• Type: Butt and Centre Wire Stop
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 250 KCMIL Stranded, 250 Navy
• Conductor Material: Copper
• Color Code: Yellow
• Catalog Description: 250 KCMIL CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 16 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt and Centre Wire Stop Type; 2.46 Inch; 0.75 Inch Outer Diameter; Copper Conductor Material; UL 486A/B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 250 kcmil Stranded, 250 Navy Conductor Size; Yellow Color Code; Short With Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index Number 16; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810557006
• SKU Name: bur ys29lbox

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
