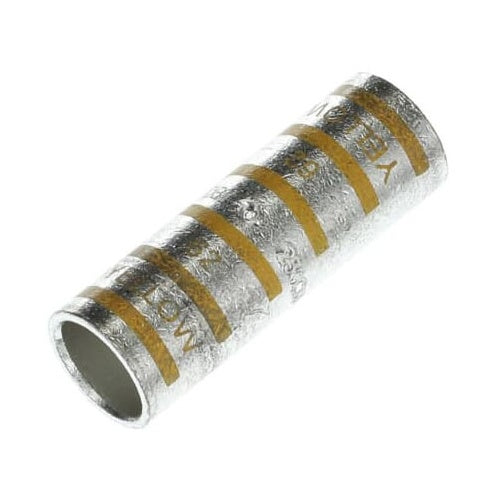

T&B 54513 Copper Tin Plated 2-Way Connector Splice Standard 250 Yellow

Overview

T&B 54513 Copper Tin Plated 2-Way Connector Splice Standard 250 Yellow

Product Specifications

• UPC: 78621054513
• Length: 2.25 Inch
• Outer Diameter: 0.77 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 62; Strip Length 1-1/8 Inch
• Catalog Number: 54513
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 250 KCMIL (Code), 4/0 AWG (Flex), 4/0 AWG (Weld, Flex), 550/24 (Flex), 133/0.0399 (Flex), 259/0.0286 (Flex), 637/0.0183 (Flex)
• Conductor Material: Copper
• Color Code: Yellow
• Barrel Type: Standard
• Catalog Description: COPPER TWO-WAY SPLICE CONNECTOR, STANDARD BARREL, MAX 35KV, WIRE SIZE 250 KCMIL, TIN PLATED, DIE CODE 62, DIE COLOR CODE YELLOW
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 2.25 Inch; 0.77 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 250 kcmil (Code), 4/0 AWG (Flex), 4/0 AWG (Weld, Flex), 550/24 (Flex), 133/0.0399 (Flex), 259/0.0286 (Flex), 637/0.0183 (Flex) Conductor Size; Yellow Color Code; Standard Barrel Type; Die Code 62; Strip Length 1-1/8 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210545134
• SKU Name: t&b 54513
