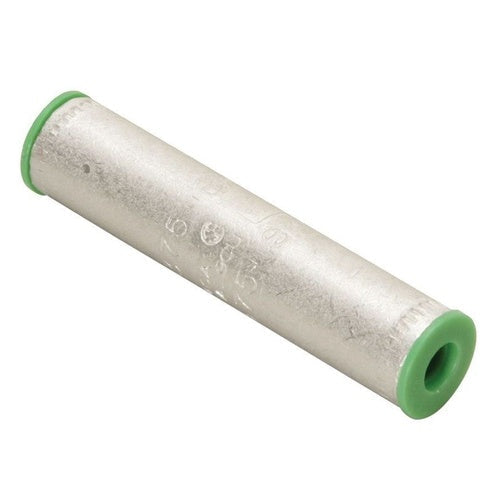

Burndy YS2CA1 Copper/Aluminum Compression Lug

Overview

Burndy YS2CA1 Copper/Aluminum Compression Lug

Product Specifications

• UPC: 78181075660
• Barrel Type: Standard with Belled End, Chamfered
• Length: 2.44 Inch
• Outer Diameter: 0.53 Inch
• Body Material: Electro-Tin Plated Aluminum
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index 348; Temperature Rating 90 Deg C
• Catalog Number: YS2CA1
• Brand Name: HYLINK[TM]
• Model: Type YS-A
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 2 AWG Aluminum/Stranded Copper
• Conductor Material: Aluminum/Copper
• Color Code: Pink
• Catalog Description: 2 AWG AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 348 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 2.44 Inch; 0.53 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Aluminum Body Material; 2 AWG Aluminum/Stranded Copper Conductor Size; Pink Color Code; Standard With Belled End, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index 348; Temperature Rating 90 Deg C; TYPE YS-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810756607
• SKU Name: bur ys2ca1
