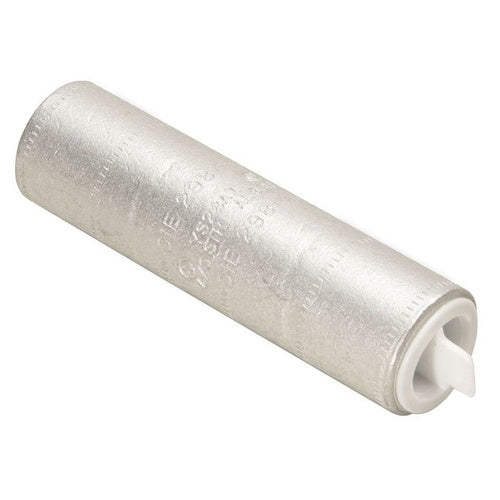

Burndy YS30A1 300Mcm Butt Splice

Overview

Burndy YS30A1 300Mcm Butt Splice

Product Specifications

• UPC: 78181075740
• Barrel Type: Standard with Chamfered End
• Length: 3.2 Inch
• Body Material: Electro Tin Plated High Conductivity Wrought Aluminum
• Approval: UL 468A/468B, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 1 3/4 INCH; DIE INDEX 470; TEMPERATURE RATING 90 DEG C; USED ON ALUMINUM TO ALUMINUM, ALUMINUM TO COPPER, COPPER TO COPPER CONDUCTOR COMBINATION
• Catalog Number: YS30A1
• Brand Name: HYLINK[TM]
• Model: YS-A
• Type: Butt
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 300 KCMIL
• Conductor Material: Aluminum
• Color Code: Blue
• Catalog Description: 300 KCMIL AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 470 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 3.2 Inch; Aluminum Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated High Conductivity Wrought Aluminum Body Material; 300 kcmil Conductor Size; Blue Color Code; Standard With Chamfered End Barrel Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 1 3/4 Inch; Die Index 470; Temperature Rating 90 Deg C; Used on Aluminum to Aluminum, Aluminum to Copper, Copper to Copper Conductor Combination; YS-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810757406
• SKU Name: bur ys30a1

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
