Additional Information: RoHS Compliant; Wire Strip Length 7/8 Inch; Die Index 375; Temperature Rating 90 Deg C
Catalog Number: YS4CA1
Brand Name: HYLINK[TM]
Model: Type YS-A

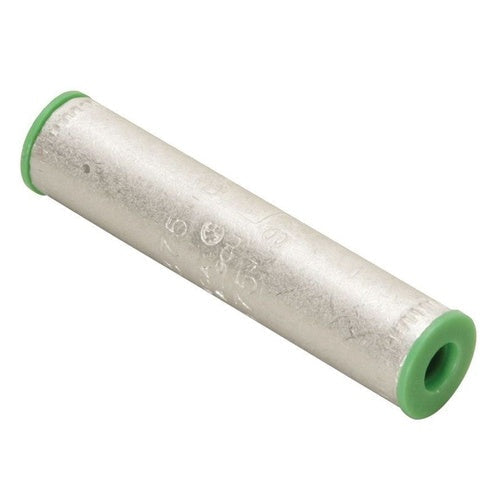

Type: Butt with Centre Wire Stop
Voltage Rating: 600 V to 35 KV
Conductor Size: 4 AWG Aluminum/Stranded Copper
Conductor Material: Aluminum/Copper
Color Code: Green
Catalog Description: 4 AWG AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 375 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Butt With Centre Wire Stop Type; 1.97 Inch; 0.43 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Aluminum Body Material; 4 AWG Aluminum/Stranded Copper Conductor Size; Green Color Code; Standard With Belled End, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 7/8 Inch; Die Index 375; Temperature Rating 90 Deg C; TYPE YS-A Model
