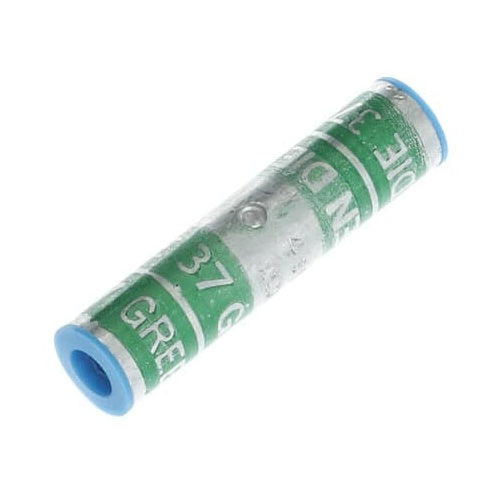

T&B 60512 Compression Connector, 2 Way

Overview

T&B 60512 Compression Connector, 2 Way

Product Specifications

• UPC: 78621060512
• Outer Diameter: 0.46 Inch
• Body Material: Wrought Electro Tin Plated High Conductivity Aluminum
• Approval: UL, CSA
• Additional Information: Die Code 37; Temperature Rating 90 Deg C
• Catalog Number: 60512
• Type: 2-Way
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 4 AWG Stranded
• Conductor Material: Aluminum/Copper
• Color Code: Green
• Barrel Type: Standard
• Length: 1.81 Inch
• Catalog Description: TWO-WAY ALUMINUM SPLICE CONNECTOR, WIRE SIZE 4 STR, DIE CODE 37, DIE COLOR CODE GREEN
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 1.81 Inch; 0.46 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Wrought Electro Tin Plated High Conductivity Aluminum Body Material; 4 AWG Stranded Conductor Size; Green Color Code; Standard Barrel Type; Die Code 37; Temperature Rating 90 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210605128
• SKU Name: t&b 60512

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
