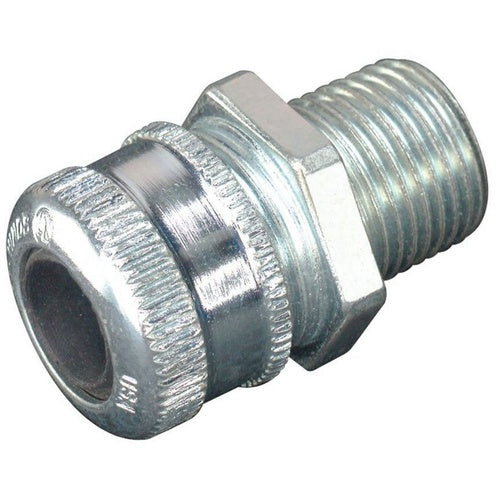

Catalog Description: EATON CROUSE-HINDS SERIES CGB CABLE GLAND, CABLE RANGE MIN/MAX: 1.000-1.188", NON-ARMOURED AND TRAY CABLE, NON-ARMOURED, STEEL, GENERAL PURPOSE, SEALING GASKET AND LOCKNUT, 1" NPT
Full Technical Description: Straight Type; Zinc Electroplated Chromate Steel Material; 2.38 Inch; Non-Armored, Tray Cable Type; UL (Canada and Us) Approval; NEMA 3R Enclosure; 1 Inch Thread Size; -25 to 40 Deg C Operating Temperature; Watertight; 1 to 1.19 Inch Cable Outer Diameter; Applicable Standard NEC 501.10; Thread Type MNPT; Thread Length 0.63 Inch; Outer Diameter 2.38 Inch; Application Hazardous Location; Includes Sealing Gasket; CGB Model
