Additional Information: Enclosure Type NEMA 4/6/12; Throat Inner Diameter 0.96 Inch; Thread Length 0.63 Inch; Temperature Rating 194 Deg F; Applicable Standard NEC/CEC
Catalog Number: SR-10012
Model: SR

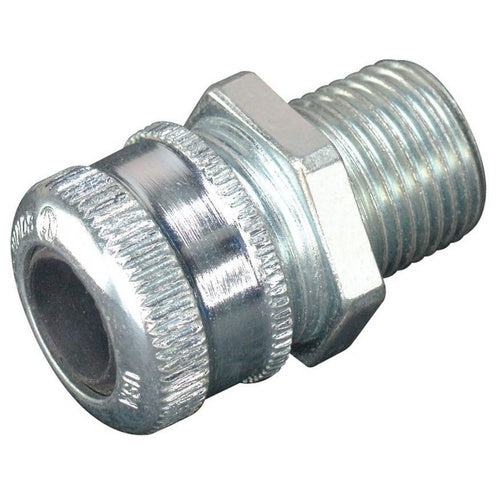

Type: Straight Male
Thread Size: 1 Inch
Material: Zinc Plated Malleable Iron (Body), PVC (Grommet)
Cord Size: 1 to 1.2 Inch
Size: 1.94 Inch Diameter x 1.38 Inch Length
Approval: UL, CSA
Catalog Description: OZ-GEDNEY TYPE SR GOLD SEAL STRAIN RELIEF STRAIGHT CONNECTOR, SIZE: 1 IN, CONDUCTOR RANGE: 1 - 1.2 IN, MALLEABLE IRON, PVC GROMMETS, FINISH: ZINC PLATED, 90 DEG C, CONNECTION: MNPT, 0.96 IN THROAT INSIDE DIAMETER, 5/8 IN THREAD LENGTH, DIMENSIONS
Category: Cable & Cord Grips
Full Technical Description: Straight Male Type; Zinc Plated Malleable Iron (Body), PVC (Grommet) Material; 1.94 Inch Diameter X 1.38 Inch Length Size; UL, CSA Approval; Commercial and Industrial Application; 1 Inch Thread Size; 1 to 1.2 Inch Cord Size; Enclosure Type NEMA 4/6/12; Throat Inner Diameter 0.96 Inch; Thread Length 0.63 Inch; Temperature Rating 194 Deg F; Applicable Standard Nec/Cec; SR Model
