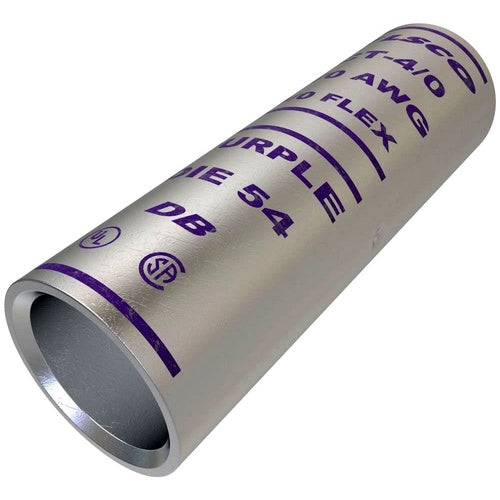

Ilsco CT-4/0 4/0Awg Copper Crimp Connector

Overview

Ilsco CT-4/0 4/0Awg Copper Crimp Connector

Product Specifications

• UPC: 78366911988
• Length: 2.125 Inch
• Inner Diameter: 0.546 Inch
• Outer Diameter: 0.687 Inch
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Approval: UL 486A/B, CSA
• Additional Information: RoHS Compliant; Expanded Wire Size 1 to 4/0 AWG; Temperature Rating 90 Deg C
• Catalog Number: CT-4/0
• Model: Type CT
• Type: Centre Wire Stop
• Voltage Rating: 35 KV
• Conductor Size: 4/0 AWG
• Conductor Material: Copper
• Color Code: Purple
• Barrel Type: Short with Chamfered End
• Catalog Description: SURECRIMP COPPER COMPRESSION SLEEVE, CONDUCTOR SIZE 4/0, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Centre Wire Stop Type; 2.125 Inch; 0.546 Inch Inner Diameter; 0.687 Inch Outer Diameter; Copper Conductor Material; UL 486A/B, CSA Approval; 35 kV Voltage Rating; Electro-Tin Plated High Strength Seamless Copper Body Material; 4/0 AWG Conductor Size; Purple Color Code; Short With Chamfered End Barrel Type; Surecrimp [R] Brand; RoHS Compliant; Expanded Wire Size 1 to 4/0 AWG; Temperature Rating 90 Deg C; TYPE CT Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783669119886
• SKU Name: ct4/0 ilsco

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
