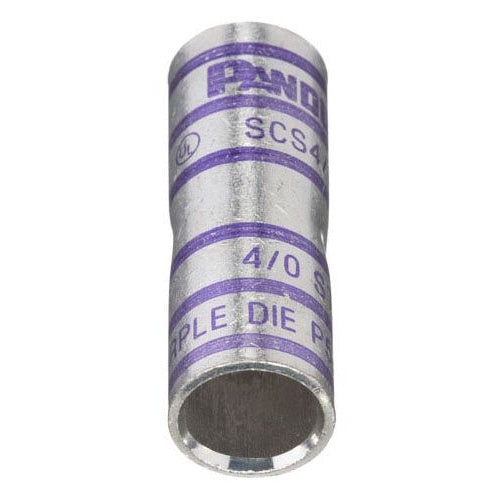

Panduit SCS4/0-X Copper Butt Splice 4/0Awg Pkg 10

Overview

Panduit SCS4/0-X Copper Butt Splice 4/0Awg Pkg 10

Product Specifications

• UPC: 07498390340
• Length: 2.12 Inch
• Inner Diameter: 0.56 Inch
• Outer Diameter: 0.71 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCS4/0-X
• Model: SCS
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 4/0 AWG
• Conductor Material: Copper
• Color Code: Purple
• Barrel Type: Standard
• Catalog Description: COPPER BUTT SPLICE, STANDARD BARREL, 4/0 AWG WIRE.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2.12 Inch; 0.56 Inch Inner Diameter; 0.71 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 4/0 AWG Conductor Size; Purple Color Code; Standard Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCS Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983903405
• SKU Name: pand scs4/0x
